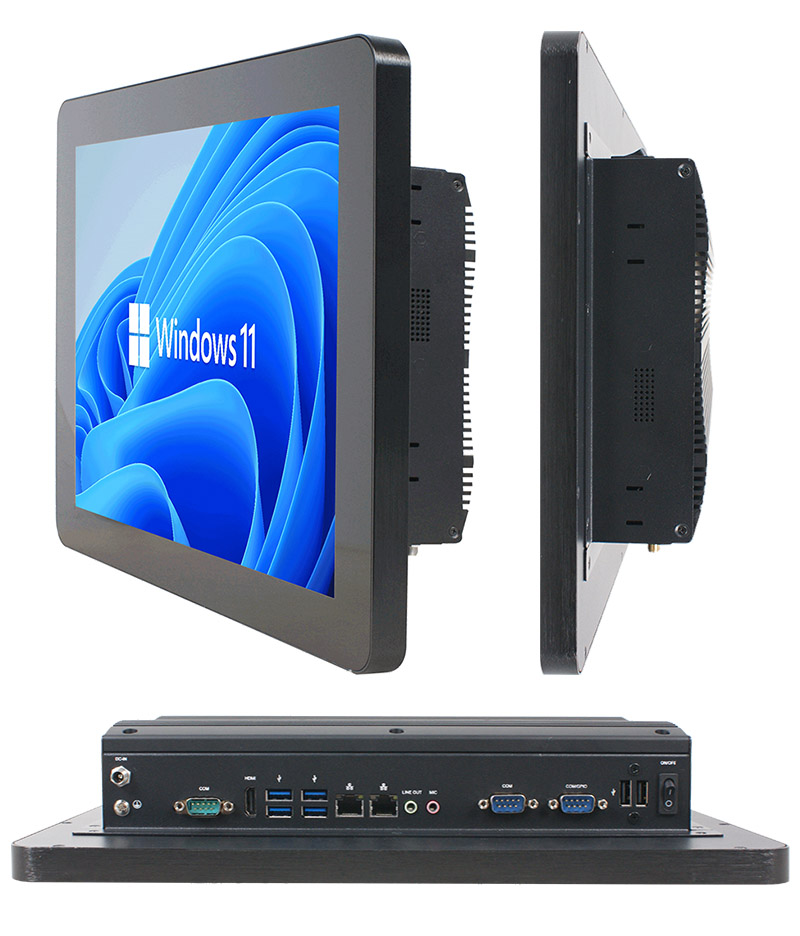

Jetway P150CI3964120-N PanelPC (Intel Celeron J6412) [15" Multi-Touch Panel TFT]

Jetway P150CI3964120-N PanelPC (Intel Celeron J6412) [15" Multi-Touch Panel TFT]
  • Intel Celeron !
  • Multi-Touch !
  • 15" WXGA Panel Computer !

  • 15" WXGA (1024 x 768) LED Display
  • Projected Capacitive Multi Touch (P-CAP)
  • Aluminum Front Bezel
  • Fanless Intel® Celeron® Processor J6412
  • Up to 32GB DDR4-3200, 2 x Intel 2.5GbE
  • HDMI-out for 2nd Display
  • VESA 100mm/Panel Mount Support
  • Support TPM2.0 (option)
  • DC-in 12V


Share

879.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
PROCESSOR Intel® Celeron® Processor J6412 (formerly Elkhart Lake) , 2.0 GHz (Quad-Core), Burst frequency 2.6GHz
SYSTEM MEMORY 1 x DDR4 3200 Single Channel SODIMM, Non-ECC (Max.16GB, up to 3200MHz)
ETHERNET 2 x Intel® I225-V, 2.5GbE Base-TX
STORAGE DEVICE 1 x M.2 M-key 2242/2280 (SATA)
1 x 2.5″ SATA-III Drive Bay
I/O 3 x DB9 Type COM port (2 x RS-232, 1 x RS-485)
4 x USB3.2 Gen 1
2 x USB2.0
1 x HDMI2.0b (Max. Resolution: 4096 x 2160@60Hz)
2 x RJ45 10/100/1000/2500 LAN
1 x DC-in 12V Jack (Lock type)
1 x Line-out
1 x MIC
1 x Power Button
EXPANSION 1 x M.2 E-key 2230 (PCIe x1/USB2) (internal RP-SMA wires and Antenna pre-installed)
CELLULAR (5G) —
OS SUPPORT Windows 10 (64bit), Windows 11 (enable PTT in BIOS)
Linux
MECHANICAL
CONSTRUCTION Aluminum Front Bezel + Metal Chassis
MOUNTING VESA 100mm, Panel Mount
DIMENSIONS (W x H x D) 367.4 x 291.4 x 72.5mm (14.46” x 11.47″ x 2.85”)
CARTON DIMENSION 597 x 357 x 483mm (23.50” x 14.06″ x 19.02”)
GROSS WEIGHT —
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE -10°C ~ 60°C (14°F ~ 140°F) with 0.5 m/s airflow
STORAGE TEMPERATURE -20°C ~ 70°C (-4°F ~ 158°F)
STORAGE HUMIDITY 90% @40°C (non-condensing)
VIBRATION 1 Grms/ 5~ 500Hz/ operation
SHOCK —
CERTIFICATION Meet CE/FCC Class A
POWER
INPUT DC-in 12V
LCD
DISPLAY TYPE 15.0″ TFT-LCD, LED
MAX. RESOLUTION 1024 x 768
MAX. COLORS 16.7M colors (8 bit for R,G,B)
LUMINACE 350 cd/m²
VIEWING ANGLE 178° (H), 178° (V)
BACK LIGHT LED
TOUCH SCREEN
TYPE P-CAP Touchscreen
LIGHT TRANSMISSION 85%
Data sheet Download (PDF)
Data sheet Print view
