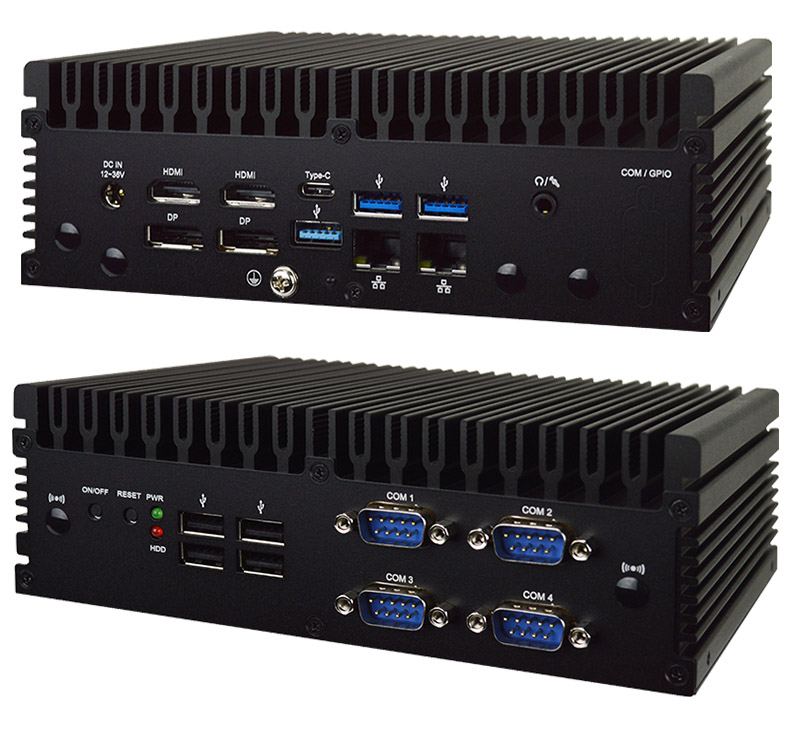

Jetway B382FRPU1 (Embedded Box PC, Intel i5-1335U Processor, 12-36V Input) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway B382FRPU1 (Embedded Box PC, Intel i5-1335U Processor, 12-36V Input) <b>[FANLESS]</b>
  • Intel Core i5-1335U !
  • Fanless !

  • Onboard with Intel® 13th Gen Core™ i5-1335U/1335UE (Formerly Raptor Lake-P, TDP 15W)
  • High-Speed Networking: 2 x 2.5GbE for fast and reliable connectivity
  • Storage & Expansion: 1 x SATA III, 1 x M.2 E-Key, 1 x B+M Key paired with 1 x Nano SIM Slot
  • Flexible Storage: 1 x M.2 M-key 2242/2280 (SATA III), 1 x M.2 M-key 2280
  • Comprehensive I/O: 4 x RS485/422/232, 3 x USB 3.2 Gen 2, 4 x USB 2.0, 2 x RJ45
  • Versatile Mounting: Supports desktop, wall mount, and DIN rail installation


Share

RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
SYSTEM
MB FORM FACTOR3.5"
CPUOnboard Intel® 13th Gen Core™ i5-1335U (Formerly Raptor Lake-P, TDP 15W)
CHIPSETIntel® SoC
MEMORY2 x DDR5 4800MHz, Dual Channel SO-DIMM, up to 64GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0
RTC BATTERYLithium Battery
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~36V
90W Adapter: AC90~240V, DC19V/4.7A
POWER ON MODEAT / ATX (Default) Mode
DISPLAY
GPUIntel® Iris® Xe Graphics
Type C DP1 x Type C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
DP2 x DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIO
CODECRealtek Audio Codec
AMPLIFIER3W
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
SYSTEM I/O
REAR PANEL I/O4 x Antenna Holes
1 x DC-in (Lockable)
2 x HDMI 2.0b
2 x DP 1.4
3 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1 Type C
2 x RJ45
1 x Audio ( Line out, MIC)
1 x GND Hold
FRONT PANEL I/O1 x Power Button
1 x Reset Button
1 x Power LED
1 x HDD LED
4 x USB 2.0
4 x RS-232/422/485
STORAGE
SATA1 x 2.5” SATA III 6Gb/s internal drive bay (Max. Height 9.5 mm)
EXPANSION
M.21 x B+M-Key 2242 (SATA/PCIe 3×1) for SSD
1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
SIM1 x Nano SIM Card Slot
MECHANICAL
MOUNTINGDesktop, Wallmount, Din Rail
DIMENSIONS (W x D x H)185.0 (W) x 142.0 (D) x 61.0 (H) mm (7.28" x 5.6" x 2.4")
NET WEIGHT3.5 kg
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONChina RoHS
CMRT Report
TSCA Declaration
WEEE
REACH
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
