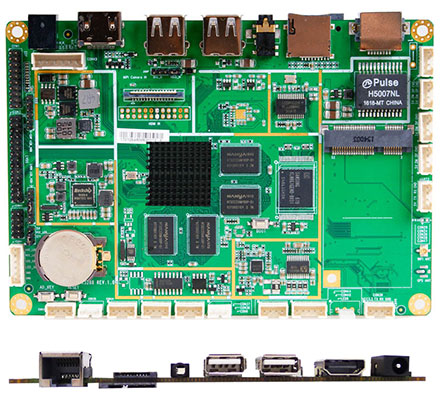

Jetway ARM-R3288-2N (ARM Cortex A17, Android 5)

Jetway ARM-R3288-2N (ARM Cortex A17, Android 5)

  • Support Rockchip RK3288 Quad-core processor
  • On-board 2GB DDR3 DRAM and 8GB flash ROM
  • Supports HDMI
  • Supports 1* Mini PCIe, 1 * TF card socket
  • Supports 6* USB2.0, 1 * OTG, 4* COMs
  • 3.5″ Form Factor


Share

229.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
 Form Factor
Dimensions –3.5” SBC (102 * 146mm)
 Processor System
CPU – Rock chip® ARM Cortex A17 RK3288 1.8GHz
Core Number – Quad-core
Max Speed – 1.8G
L2 Cache – 0
Chipset –  Rock chip® ARM Cortex A17 RK3288 SoC
BIOS – 0
PMU – Rock chip® RK808‐B
 Expansion Slot
PCI – 0
Mini-PCIe – 1 (full size，by USB interface)
SIM card holder – 1
Technology – Onboard DDR3L 1333MHz 2GB
Max. – 4GB
Socket –
Flash Rom – 8GB (Max 32GB)
 Graphics
Controller – (by CPU)
VRAM – Shared Memory
VGA – 0
LVDS – 1 * 24 bit Dual Channel connector
eDP – 1 * eDP support up to 3840*2160@60Hz
HDMI – 1 (2.0)
DVI‐D – 0
MultiDisplay – Dual Display
Ethernet – 10/100/1000 Mbps
Controller – 1 * Realtek RTL8211E‐VB Gigabit LAN
Connector – 1 * RJ 45
Audio
CODEC – HD Audio : ES8316
Channel – 2 Channel
 Special Features
WIFI – 802.11 b/g/n,2.4G
WIFI Chip – RTL8723BS
Bluetooth – BT‐V4.0 BLE
3G –  WCDMA, EVDO,CDMA,GSM (Option)
LTE –  LTE‐TDD/LTE‐FDD/TD‐SCDMA/EDGE/GPRS/GSM (Option)
OS –  Android 5.1
VGA – 0
DVI‐D – 0
Display Port – 0
Ethernet – 1
Audio – 1 (Line-Out, MIC)
Serial – 0
SIM Socket – 1
TF Card Socket – 1
LVDS / inverter – 1 (24 bit)
USB – 4 ( 4 * USB 2.0)
Others – 1 * I2C
SATA – 0
Interval – 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR – 12V DC-in ( PWR Con)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
Warranty
Warranty – 2 Years Limited Warranty
Temperature – Operating: 0°C ~ 45°C
– Storage: -20°C ~ 65°C
Packing – Net Weight:
‐ Gross Weight:
‐ Color Box dimension:
Data sheet Download (PDF)
Data sheet Print view
Jetway ARM Overview Download (PDF)
